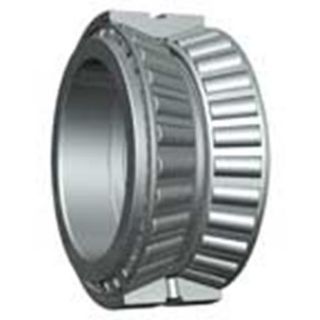

Picture of 359S 90059 TKN

Actual Product May Vary From Image

359S 90059 TKN

TRB Double Cup Assembly <4 OD

Manufacturer: Timken

Manufacturer part number: 359S-90059

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Specifications

Bore/Inside Diameter (in):	1.8125
Bore/Inside Diameter (mm):	46.038
C1 Dynamic Load Rating:	29700
C90 Dynamic Load Rating:	7690
Catalog Bearing Width (in):	2
Catalog Bearing Width (mm):	50.8
Max Housing Fillet Radius (in):	0.03
Max Housing Fillet Radius (mm):	0.8
Max Shaft Fillet Radius (in):	0.09
Max Shaft Fillet Radius (mm):	2.3
Outside Diameter (in):	3.548
Outside Diameter (mm):	90.119
