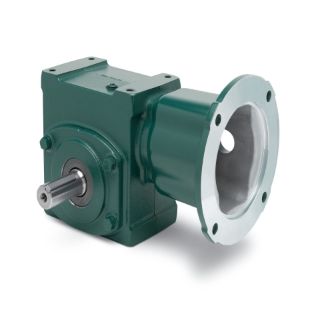

Actual Product May Vary From Image

35A15L14 DOD

Name: 35A15L14 DOD
Brand: Dodge
SKU: 35A15L14 DOD
Price: 2,562.25 USD
Availability: OutOfStock

35A15L14 TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 35A15L14

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$2,562.25

Qty:

Product Details

Base to Output Center Height:	3.9900
Base to Output Center Height (Unit):	INCH
Case Size:	35
Center Distance:	3.5000
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	7.0600
Center to End of Shaft Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	7.4400
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	6.6600
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	3-Piece Coupled
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 140TC Frame
Mounting Bolt Pattern Length:	7.5000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	4.0000
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	15.0000
Output Shaft:	Left (Solid A)
Output Shaft Center to Input Motor Mounting Face Distance:	10.2600
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Left
Overhung Load:	2760
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	3599
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Output:	1.5000
Shaft Diameter Output (Unit):	INCH
Shaft Length Output:	3.5100
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	7.5600
Thermal Horsepower Rating (Unit):	HORSEPOWER
