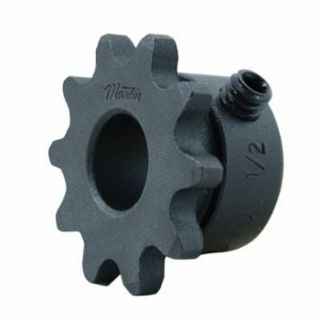

Actual Product May Vary From Image

35BS11 1/2 MSG

Name: 35BS11 1/2 MSG
Brand: Martin Sprocket & Gear
SKU: 35BS11 1/2 MSG
Price: 14.82 USD
Availability: InStock

Martin 35BS11 1/2 Bored-to-Size Type BS Single Pitch Roller Chain Sprocket, 1/2 in Dia Bore, 1.502 in OD, #35 Chain, 11 Teeth, 3/8 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 35BS11 1/2

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	1	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$14.82

Qty:

Product Details

Brand Name

Martin

Type

Bored-to-Size Type BS

Description

These finished bore sprockets are shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.

Martin Single Pitch Roller Chain Sprocket, Bored-to-Size Type BS, 1/2 in Bore Dia, 1.502 in Outside Dia, #35 Chain, 11 Teeth, 3/8 in Pitch, 1.331 in, 1.063 in Hub Dia, 1/4-20 x 1/4 in Screw, 1/8 x 1/16 in Keyway, 3/4 in Length Through Bore, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

Stock finished bores
Non-hardened teeth

Includes

(2) Setscrews

Specifications

Bore Diameter:	1/2 in
Chain Size:	#35
Country of Origin:	US
Hub Diameter:	1.063 in
Keyway Size:	1/8 x 1/16 in
Length Through Bore:	3/4 in
Material:	Steel
Number of Teeth:	11
Outside Diameter:	1.502 in
Pitch:	3/8 in
Pitch Diameter:	1.331 in
Screw Size:	1/4-20 x 1/4 in
