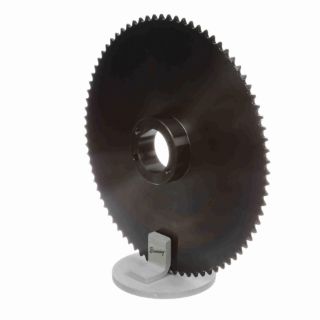

Picture of 35H80 BRN
Actual Product May Vary From Image

35H80 BRN

Browning® 1169390 Single Strand Split Taper Bushed Type 3 Roller Chain Sprocket, 3/8 in Dia Bore, 9.769 in OD, #35 Chain, 80 Teeth, Steel
Manufacturer: Regal Rexnord
Manufacturer part number: 1169390
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
8 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$276.31

Product Details

Brand Name

Browning®

Type

Single Strand Split Taper Bushed Type 3

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
Browning® Roller Chain Sprocket, Single Strand Split Taper Bushed Type 3, 3/8 in Bore Dia, 9.769 in Outside Dia, #35 Chain, 80 Teeth, 9.552 in, 2.494 in Hub Dia, 1.5123 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Features

  • This product has the Browning® exclusive twice the life guarantee
  • Easy installation and removal
  • Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
  • External key higher torque capacity, aligns bolt holes
  • Provides key-to-key drive
  • Double split barrel improved clamping
  • Solid flange true concentricity
  • Longer barrel better support on the shaft
  • For use with 3/8 in pitch ANSI chain

Specifications

Bore Diameter:3/8 in
Chain Size:#35
Country of Origin:CN
Hub Diameter:2.494 in
Length Through Bore:1.5123 in
Material:Steel
Number of Teeth:80
Outside Diameter:9.769 in
Pitch Diameter:9.552 in
