Actual Product May Vary From Image

35JA20 MSG

Name: 35JA20 MSG
Brand: Martin Sprocket & Gear
SKU: 35JA20 MSG
Price: 29.60 USD
Availability: OutOfStock

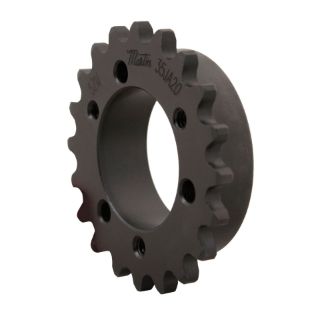

Martin 35JA20 Type B Single Strand Solid Stock Bore Roller Chain Sprocket, 1-1/4 in Dia Bore, 2.593 in OD, #35 Chain, 20 Teeth, 3/8 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 35JA20

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$29.60

Qty:

Product Details

Brand Name

Martin

Type

Type B Single Strand Solid Stock Bore

Description

QD® (Quick Detachable) is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.

Martin Roller Chain Sprocket, Type B Single Strand Solid Stock Bore, 1-1/4 in Bore, 2.593 in OD, #35 Chain, 20 Teeth, 3/8 in Pitch, 2.397 in Pitch Diameter, 2.025 in Diameter Hub, 1-1/4 in Length Through Bore, QD® JA Bushing, Steel

Standards

Features

Without hardened teeth

Specifications

Bore Diameter:	1-1/4 in
Bushing Type:	QD® JA
Chain Size:	#35
Country of Origin:	US
Hub Diameter:	2.025 in
Length Through Bore:	1-1/4 in
Material:	Steel
Number of Teeth:	20
Outside Diameter:	2.593 in
Pitch:	3/8 in
Pitch Diameter:	2.397 in
