Actual Product May Vary From Image

35SS O/L MOR

Name: 35SS O/L MOR
Brand: Regal Rexnord
SKU: 35SS O/L MOR
Availability: OutOfStock

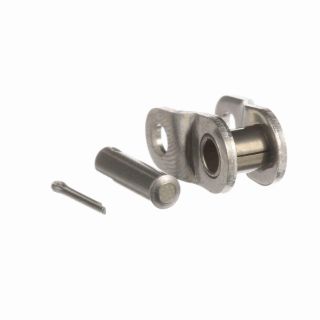

Morse® 341783 Offset Link With Cotter Pin, 35 Chain, 3/8 in Pitch, 0.466 in OAW, 0.141 in Dia Pin, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 341783

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Description

Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.

Morse® Offset Link, 35 Chain, 3/8 in Pitch, 0.466 in Overall Width, 0.141 in Pin Dia, 0.35 in Link Plate Height, 0.05 in Link Plate Thickness, Steel

Application

Oil Industry Machinery, Paper Industry Machinery, Rubber, Plastic Industry Equipment and Textile Industries

Standards

ANSI Certified

Features

1-strand

Specifications

Chain Size:	35
Country of Origin:	JP
Link Plate Height:	0.35 in
Link Plate Thickness:	0.05 in
Material:	Steel
Overall Width:	0.466 in
Pin Diameter:	0.141 in
Pitch:	3/8 in
