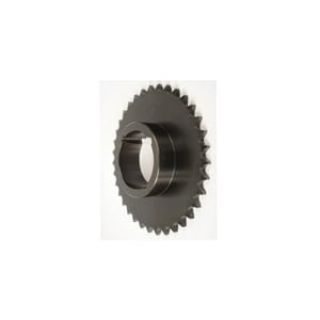

Actual Product May Vary From Image

35TB112 BRN

Name: 35TB112 BRN
Brand: Regal Rexnord
SKU: 35TB112 BRN
Availability: OutOfStock

Browning® 3746179 Single Strand Taper Bore Bushed Type 1 Roller Chain Sprocket, 1/2 in Dia Bore, 13.591 in OD, #35 Chain, 112 Teeth, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3746179

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand Taper Bore Bushed Type 1

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Taper Bore Bushed Type 1, 1/2 in Bore Dia, 13.591 in Outside Dia, #35 Chain, 112 Teeth, 13.371 in, 3-1/4 in Hub Dia, 1 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Features

This product has the Browning® exclusive twice the life guarantee
Compact design
Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
1-11/16 in/ft taper
Setscrew or cap screw acts as external key
Flush fit, less space on shaft
No protruding flange
For use with 3/8 in pitch ANSI chain

Specifications

Bore Diameter:	1/2 in
Chain Size:	#35
Country of Origin:	CN
Hub Diameter:	3-1/4 in
Length Through Bore:	1 in
Material:	Steel
Number of Teeth:	112
Outside Diameter:	13.591 in
Pitch Diameter:	13.371 in
