Actual Product May Vary From Image

36391 WOO

Name: 36391 WOO
Brand: Molex/Woodhead
SKU: 36391 WOO
Availability: OutOfStock

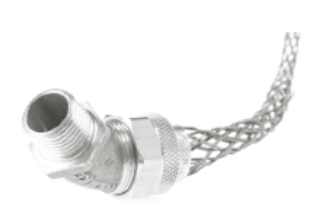

Woodhead® 36391 130096 Male Liquidtight Strain Relief Connector, 3/4 in Trade, Iron/Steel, Zinc Plated

Manufacturer: Molex/Woodhead

Manufacturer part number: 36391

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

Male

Description

Woodhead® heavy duty cord grips provide strain relief for cords on plugs, connectors, push-button stations, enclosures and pendant or hanging boxes used on portable equipment for commercial, institutional and industrial applications.

Woodhead® Liquidtight Strain Relief Connector, Male, Series: 130096, 3/4 in Trade, 45 deg Angle, Iron/Steel, Zinc Plated, 1-1/2 in Dia x 5-3/4 in L Dimensions

Application

Industrial, Electricians HVAC Contractors Irrigation Equipment and Panel Builders, 130099-0144 MAX-LOC® 3/4 in NPT Lock Nut, 130099-0150 MAX-LOC® 3/4 in NPT Gasket Sealing Ring, 130180-0333 MAX-LOC® 3/4 in NPT O-Ring Applications

Standards

CSA LR32159 | UL E61303

Features

Robust design works with liquidtight conduit for flexible conduit including motor applications
Stainless steel mesh construction performs well to resist corrosion
Insulated throat provides protection upon flexing, temperature change and wire entry exit
Malleable iron or zinc plated steel threaded body
Single weave mesh
Wet location suitable for NEMA 4 enclosures with gasket placed between fitting and box
3/4 in NPT thread
4-3/8 in mesh length
Stainless steel grip and mesh
zinc plated steel and aluminum mesh collars
Neoprene gasket sealing ring
Plastic throat insulation

Specifications

Angle:	45 deg
Country of Origin:	US
Dimensions:	1-1/2 in Dia x 5-3/4 in L
Finish:	Zinc Plated
Material:	Iron/Steel
Series:	130096
Trade Size:	3/4 in
