36642 WOO

Name: 36642 WOO
Brand: Molex/Woodhead
SKU: 36642 WOO
Availability: OutOfStock

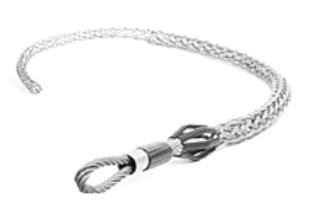

Woodhead® 36642 130095 Multi-Weave Pulling Grip, 0.75 to 0.99 in Cable, 41 in L Mesh, 14400 lb Load

Manufacturer: Molex/Woodhead

Manufacturer part number: 36642

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

Multi-Weave

Description

Woodhead Pulling Grips are available in a wide range of styles and are made of high-quality galvanized-steel wire. All styles feature a smooth, even, thin profile, making these grips easy to-use, quick-to-install and reusable many times over.

Woodhead® Pulling Grip, Multi-Weave, Series: 130095, 0.75 to 0.99 in Cable, Closed Mesh, 41 in Mesh Length, Flexible Eye, 14400 lb Load, Light Blue

Application

Electrical Contractors, Facility Maintenance and Utility Companies

Standards

CSA LR32159

Features

Galvanized steel mesh offers superior strength
Shoulder protectors center the grip within a raceway and provide abrasion resistance
Color-coded for easy identification
Wide application for bare or insulated conductors, wire rope and insulated cables for distribution line stringing and overhead transmission
Flexible eye works in both generous and tight spaces
Forged steel rotating eye can reduce rotational torque whenever pulling load is reduced
Forged steel rotating eye will not bind when used with sheaves and blocks
3/8 in eye cable thickness

Specifications

Cable Size:	0.75 to 0.99 in
Color:	Light Blue
Country of Origin:	US
Eye Type:	Flexible
Load Capacity:	14400 lb
Mesh Length:	41 in
Mesh Type:	Closed
Series:	130095
