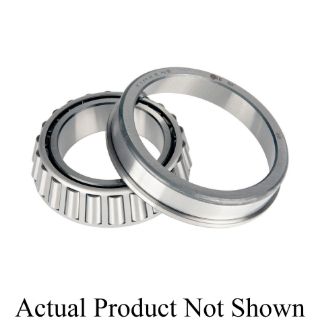

Actual Product May Vary From Image

36690 90040 TKN

Name: 36690 90040 TKN
Brand: Timken
SKU: 36690 90040 TKN
Availability: OutOfStock

Tapered Roller Bearing Single Assembly Prec.

Manufacturer: Timken

Manufacturer part number: 36690-90040

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Single Assembly Prec. | Imperial | 146.1 mm 5.8 in Bore | 193.7 mm 7.6 in OD | 9.5 mm 0.4 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Assembly Number:	90040
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	44200
Flange Outside Diameter (in):	0.1563
Flange Outside Diameter (mm):	3.97002
Flange Thickness (in):	0.1563
Flange Thickness (mm):	3.97002
Inner Race Width (in):	1.125
Inner Race Width (mm):	28.575
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	7.625
Outer Diameter (mm):	193.675
Outer Diameter Type:	Straight OD
Outer Race Width (in):	0.9063
Outer Race Width (mm):	23.02002
Overall Width (in):	0.375
Overall Width (mm):	9.525
Precision class:	Class 0 (Precision)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Single
Shaft Size (in):	5.75
Shaft Size (mm):	146.05
Static Load Rating:	88600
