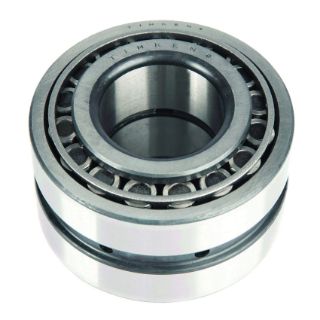

Actual Product May Vary From Image

36690-903B1 TKN

Name: 36690-903B1 TKN
Brand: Timken
SKU: 36690-903B1 TKN
Availability: OutOfStock

Timken® 36690-903B1 36600 Type TDO Tapered Roller Bearing Assembly, 5-3/4 in Dia Bore, 7-5/8 in OD, 2 Rows, 2.5624 in W, 76900 lb Dynamic/88600 lb Static Load

Manufacturer: Timken

Manufacturer part number: 36690-903B1

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Type TDO

Description

The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.

Timken® Tapered Roller Bearing Assembly, Type TDO, Series: 36600, 5-3/4 in Bore Dia, 7-5/8 in Outside Dia, 2 Rows, 2.5624 in Width, 76900 lb Dynamic/88600 lb Static, Steel Bearing, Stamped Steel Cage, -65 to 250 deg F

Application

Heavy Duty Gear Drives and Various Industrial Configurations

Standards

ABMA/ANSI Standard

Features

Internal geometry provides increased stiffness and exceptional runout
Radial runout high point marked for accurate installation
Two row double outer race bearings (TDO) feature a double outer race (cup) and two single inner races (cones)
Outer race features groove and lubrication holes in the outside diameter
Most commonly sold with a spacer to control the axial internal clearance to eliminate the adjustment procedure
Internal axial clearance is marked on the spacer for identification and reorder purposes
Internal axial clearance is factory preset to create a matched bearing assembly
Components cannot be mixed with other components from another bearing assembly
Wide effective bearing spread that is ideal for applications in which overturning moments are a significant load component
Can be used in fixed positions or allowed to float in the housing bore

Includes

(1) 36690 2-1/8 in W Double Cone

Specifications

Bearing Material:	Steel
Bore Diameter:	5-3/4 in
Cage Material:	Stamped Steel
Load Capacity:	76900 lb Dynamic/88600 lb Static
Number of Rows:	2
Outside Diameter:	7-5/8 in
Series:	36600
Temperature Rating:	-65 to 250 deg F
Width:	2.5624 in
