36L050 SDS MSG

Name: 36L050 SDS MSG
Brand: Martin Sprocket & Gear
SKU: 36L050 SDS MSG
Price: 107.82 USD
Availability: OutOfStock

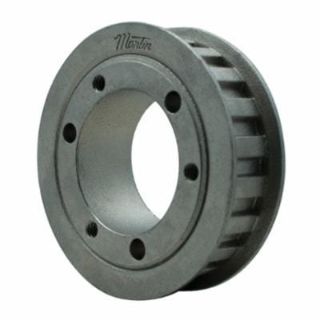

Martin 36L050 SDS Solid Type GF-1 Stock Timing Pulley, 1/2 to 2 in QD® Bushed Bore, 4.267 in OD, 36 Grooves, 4.297 in Dia Pitch, 0.562 in W Face

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 36L050 SDS

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$107.82

Qty:

Product Details

Brand Name

Martin

Type

Solid Type GF-1

Description

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin Stock Timing Pulley, Solid Type GF-1, QD® Bushed Bore, 1/2 to 2 in Bore Dia, 4.267 in Outside Dia, 4.297 in, 36 Grooves, 3/8 in Pitch, 0.562 in Face Width, 4-17/32 in Flange Dia, SDS Bushing, 1-3/8 in Overall Length, For Use With: 1/2 in W Type L Belt, Steel

Application

Agitators, Compressors, Conveyors, Fans, Paper Machinery and Pumps

Specifications

Bore Diameter:	1/2 to 2 in
Bore Type:	QD® Bushed
Bushing Type:	SDS
Country of Origin:	US
Face Width:	0.562 in
Flange Diameter:	4-17/32 in
Material:	Steel
Number of Grooves:	36
Outside Diameter:	4.267 in
Overall Length:	1-3/8 in
Pitch:	3/8 in
Pitch Diameter:	4.297 in
Suitable For Use With:	1/2 in W Type L Belt
