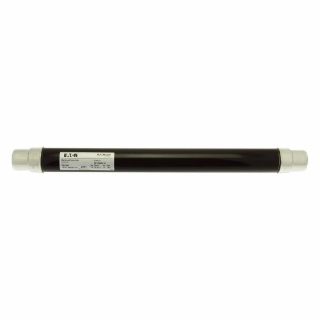

Actual Product May Vary From Image

36TDQSJ10 BSF

Name: 36TDQSJ10 BSF
Brand: Bussmann
SKU: 36TDQSJ10 BSF
Availability: OutOfStock

Bussmann 36TDQSJ10 DIN Dimensioned Medium Voltage Euro-IEC Fuse, 10 A, 36 kV, 35.5 kA Interrupt

Manufacturer: Bussmann

Manufacturer part number: 36TDQSJ10

Availability: Expected Leadtime 36 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

DIN Dimensioned Medium Voltage

Description

Eaton Bussmann™ series range of 36 kV DIN Medium voltage fuse links are suitable for transformer protection. These fuse links can be used even where there is no secondary LV protection, provided they are used with fuse switches fitted with instantaneous striker tripping.

Bussmann Euro-IEC Fuse, DIN Dimensioned Medium Voltage, Indicating/Non-Indicating: Indicating, 10 A, 36 kV, 35.5 kA Interrupt, Brown, 54 mm Dia x 54 mm H Body Size

Application

Medium Voltage IEC Designed Equipment Applications

Standards

UL Listed | VDE

Features

Back-up, transformer protection, indoor or outdoor use
Standard package
35.5 kA breaking capacity
Single barrel
2.5 kg weight
Bolt-on connection
Pre Arc (I2T) 3.1 x 103
Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
Silver elements ensuring high conductivity and low power (revenue) loss
100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained

Specifications

Amperage Rating:	10 A
Body Size:	54 mm Dia x 54 mm H
Color:	Brown
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	35.5 kA
Voltage Rating:	36 kV
