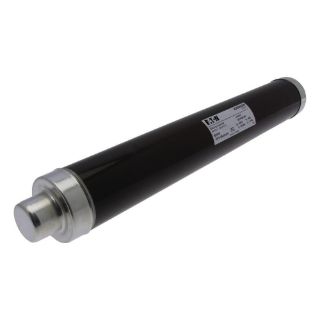

Actual Product May Vary From Image

36TFQSJ40 BSF

Name: 36TFQSJ40 BSF
Brand: Bussmann
SKU: 36TFQSJ40 BSF
Availability: OutOfStock

Bussmann 36TFQSJ40 DIN Dimensioned Medium Voltage Euro-IEC Fuse, 40 A, 36 kV, 35.5 kA Interrupt

Manufacturer: Bussmann

Manufacturer part number: 36TFQSJ40

Availability: Expected Leadtime 67 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

DIN Dimensioned Medium Voltage

Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Euro-IEC Fuse, DIN Dimensioned Medium Voltage, Indicating/Non-Indicating: Indicating, 40 A, 36 kV, 35.5 kA Interrupt, Brown, 80 mm Dia x 80 mm H Body Size

Application

For medium voltage IEC designed equipment

Standards

UL Listed | VDE Approved

Features

Special Features: Back-up, Transformer protection, Indoor or outdoor use
Package Type: Standard
Breaking Capacity: 35.5 kA
Barrel Type: Single
Weight: 5.6 kg
Construction: Bolt-On
Pre Arc (I2T): 4.1 x 103

Specifications

Amperage Rating:	40 A
Body Size:	80 mm Dia x 80 mm H
Color:	Brown
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	35.5 kA
Voltage Rating:	36 kV
