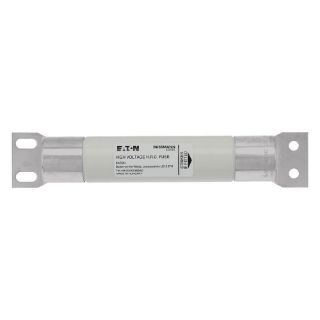

Actual Product May Vary From Image

3.6WDFHO100 BSF

Name: 3.6WDFHO100 BSF
Brand: Bussmann
SKU: 3.6WDFHO100 BSF
Availability: OutOfStock

Bussmann 3.6WDFHO100 Medium Voltage Motor Fuse, 100 A, 3.6 kVAC, 50 kAIC Interrupt, Class: Back-Up, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 3.6WDFHO100

Availability: Expected Leadtime 54 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Medium Voltage

Description

Bussmann Motor Fuse, Medium Voltage, Series: WDFHO, Indicating/Non-Indicating: Non-Indicating, 100 A, 3.6 kVAC, 50 kAIC Interrupt, Class: Back-Up, 50 Hz, Cartridge Body Type, 2 in Dia x 10 in L Body Size

Application

Electrical Assemblies, Panels and EOEMs, Power Generation Set, Substations, Transmission and Distribution, Motor Starter and Motor Circuit Protection Applications

Standards

BS 2692-1 | IEC 60282-1

Features

Cool running, low watts loss and power dissipation thanks to the M-effect
Silver elements ensuring high conductivity and low power (revenue) loss
100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained
Allows motor start current to pass on without degradation of fuse link

Specifications

Amperage Rating:	100 A
Body Size:	2 in Dia x 10 in L
Body Type:	Cartridge
Class:	Back-Up
Frequency Rating:	50 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	50 kAIC
Series:	WDFHO
Voltage Rating:	3.6 kVAC
