3702-6 RAC

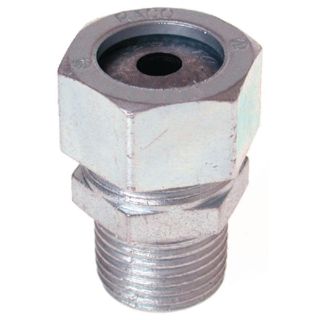

RACO® 3702-6 Form 2 Strain Relief Straight Cord Connector, 1/2 in Trade, 0.5 to 0.6 in Cable Openings, Steel, Electro-Plated Zinc
Manufacturer: Raco Industries
Manufacturer part number: 3702-6
Availability: Expected Leadtime 91 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$17.07

Product Details

Brand Name

RACO®

Type

Form 2 Strain Relief Straight

Alternate Supplier #

Grainger - 52AY04

Description

RACO® is one of the oldest brands in the electrical industry and its name is synonymous with quality and innovation. RACO® continues to be a leading manufacturer of steel electrical boxes, covers and fittings. It's product portfolio also includes a complete line of nonmetallic boxes and covers, floor boxes and switches. RACO® is dedicated to providing innovative, cost effective product solutions to the commercial and residential markets.
RACO® Cord Connector, Form 2 Strain Relief Straight, 1/2 in, Cable Openings: 0.5 to 0.6 in, NPT, Steel, Electro-Plated Zinc, Silver, 1-15/32 in L x 1-3/16 in W

Application

Used in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable, electrical applications

Features

  • All steel/malleable construction provides mechanical strength
  • Unique neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal
  • Washers have cable size range imprinted for identification - eliminates misidentifying inventory
  • Use RACO® locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or panel
  • All metallic components are zinc electro plated for added corrosion protection
  • UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
  • RACO® liquidtight strain relief cord connectors are suitable for use in class I, division 2, class II, division 1, 2 and class III, division 1, 2 hazardous locations
  • Steel nuts
  • 1/2 in L thread
  • 1/2-14 NPT

Specifications

Cable Openings:0.5 to 0.6 in
Color:Silver
Connection Type:NPT
Country of Origin:CN
Dimensions:1-15/32 in L x 1-3/16 in W
Finish:Electro-Plated Zinc
Material:Steel
Trade Size:1/2 in
