Actual Product May Vary From Image

37101 WOO

Name: 37101 WOO
Brand: Molex/Woodhead
SKU: 37101 WOO
Availability: OutOfStock

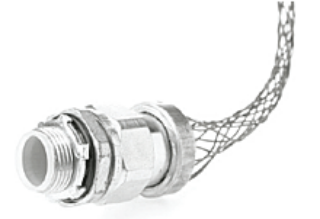

Woodhead® 37101 130096 Straight Male Liquid Tight Strain Relief Connector, 1/2 in Trade, Iron/Steel, Zinc Plated

Manufacturer: Molex/Woodhead

Manufacturer part number: 37101

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

Straight Male

Description

Woodhead® heavy-duty cord grips provide strain relief for cords on plugs, connectors, push-button stations, enclosures and pendant or hanging boxes used on portable equipment for commercial, institutional and industrial applications.

Woodhead® Liquid Tight Strain Relief Connector, Straight Male, Series: 130096, 1/2 in Trade, Iron/Steel, Zinc Plated, 1.31 in Dia x 10 in L Dimensions

Application

Industrial, Electricians HVAC Contractors Irrigation Equipment and Panel Builders, 130099-0143 MAX-LOC® 1/2 in NPT Lock Nut, 130099-0149 MAX-LOC® 1/2 in NPT Gasket, 130180-0314 MAX-LOC® 1/2 in NPT O-Ring Applications

Standards

UL E61303

Features

Robust design works with liquid-tight non-metallic conduit including motor applications
Stainless steel mesh construction performs well to resist corrosion
Insulated throat provides protection upon flexing, temperature change and wire entry exit
Malleable iron or zinc-plated steel threaded body
Single weave mesh
Wet location suitable for NEMA 4 enclosures with gasket placed between fitting and box
1/2 in NPT thread
10 in mesh length
Stainless steel grip
Zinc-plated steel and aluminum mesh collars
Neoprene gasket sealing ring
Plastic throat insulation
Non-metallic type a flexible conduit

Specifications

Country of Origin:	US
Dimensions:	1.31 in Dia x 10 in L
Finish:	Zinc Plated
Material:	Iron/Steel
Series:	130096
Trade Size:	1/2 in
