375UR60 MOR

Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style (U style, shaft input) with an output shaft and the C-face style (Q style, input quill) with an output shaft. Both the U and Q styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.

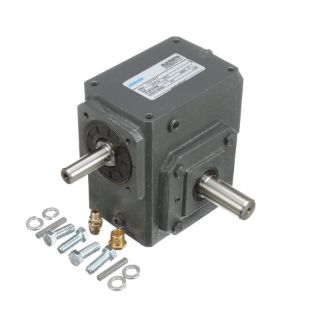

Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 60:1 Gear Ratio, 1 hp, Universal Shaft-In Input, Right Hand Output, 1 in Dia x 2.91 in L Input, 1-5/8 in Dia x 3-1/2 in L Output, 29.1 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 74.91 in-lb Input/29.1 in-lb Output, 3-3/4 in Centre Distance, Polyglycol Oil Lubrication, Direct/Universal Mount, Cast Iron, 14.12 in L x 11.88 in W x 10.44 in H
