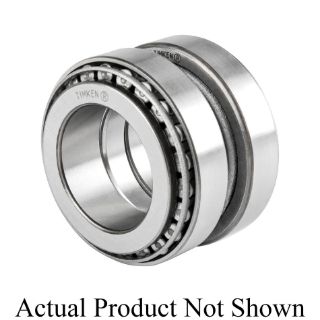

Actual Product May Vary From Image

3780-90151 TKN

Name: 3780-90151 TKN
Brand: Timken
SKU: 3780-90151 TKN
Availability: OutOfStock

Tapered Roller Bearing Two Single Row Assembly

Manufacturer: Timken

Manufacturer part number: 3780-90151

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Two-Single-Row Assembly | Imperial | 50.8 mm 2 in Bore | 93.3 mm 3.7 in OD | 60.3 mm 2.4 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Assembly Number:	90151
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	47800
Inner Race Width (in):	2.386
Inner Race Width (mm):	60.6044
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	3.6718
Outer Diameter (mm):	93.26372
Outer Diameter Type:	Straight OD
Outer Race Width (in):	2.375
Outer Race Width (mm):	60.325
Overall Width (in):	2.375
Overall Width (mm):	60.325
Precision class:	Class 2 (Standard)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Single
Shaft Size (in):	2
Shaft Size (mm):	50.8
Static Load Rating:	68600
