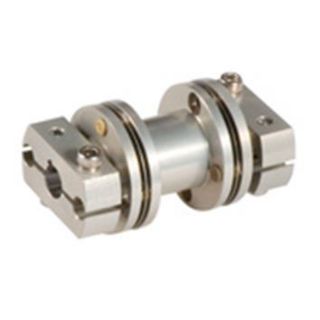

Actual Product May Vary From Image

37CBC080080 RND

Name: 37CBC080080 RND
Brand: Rexnord
SKU: 37CBC080080 RND
Availability: OutOfStock

Coupling Size: 37; Coupling Style: Miniature; Coupling Type: Flexible Disc; Horsepower [max]: 16.6 hp; Speed [max]: 55,000 rpm; Continuous Torque Rating [max]: 19 in lb; Hub Straight Bore Diameter (Hub 1): 0.1875 in; Hub Straight Bore Diameter (Hub 2): 0.

Manufacturer: Rexnord

Manufacturer part number: 37CBC080080

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Rexnord Thomas®

Description

The Thomas CBC style miniature coupling offers clamping hubs that are an integral part of the coupling. The clamping hubs assure positive fit on the shafts. There are not loose parts to handle during installation.

Specifications

Center Member Material:	Aluminum Alloy
Continuous Torque Rating Max:	19 in lb
Coupling Coating:	None
Coupling Size:	37
Coupling Style:	Miniature
Coupling Type:	Flexible Disc
Disc Pack Material:	Stainless Steel
Distance Between Shaft Ends:	1.2500 in
Hardware Coating:	None
Hardware Material:	Brass
Horsepower:	17 hp
Hub Barrel Outside Diameter Hub 1:	0.875 in
Hub Barrel Outside Diameter Hub 2:	0.875 in
Hub Bore Fit Hub 1:	Clamped
Hub Bore Fit Hub 2:	Clamped
Hub Length Hub 1:	0.688 in
Hub Length Hub 2:	0.688 in
Hub Material Hub 1:	Aluminum Alloy
Hub Material Hub 2:	Aluminum Alloy
Hub Straight Bore Diameter Hub 1 Nom:	0.1875 in
Hub Straight Bore Diameter Hub 2 Nom:	0.5000 in
Hub Style Hub 1:	Clamp
Hub Style Hub 2:	Clamp
Major Coupling Outside Diameter:	1.4375 in
Model:	37
Moment of Inertia:	0.47 lb-in2
Number of Keyways Hub 1:	0
Number of Keyways Hub 2:	0
Number of Setscrews Hub 1:	2
Number of Setscrews Hub 2:	2
Operational Misalignment Capacity (Angular) [Max]:	1.50 °
Operational Misalignment Capacity (Axial) [Max]:	0.031 in
Operational Misalignment Capacity (Parallel) [Max]:	0.028 in
Overall Coupling Length Nom:	2.625 in
Peak Torque Rating:	95,330 in lb
Speed Max:	55,000 rpm
Tube Outside Diameter:	0.87 in
