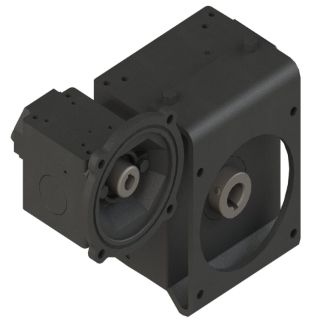

Actual Product May Vary From Image

3806 750/1 WR 56C 1.938 (SIDE MT) HUB

Name: 3806 750/1 WR 56C 1.938 (SIDE MT) HUB
SKU: 3806 750/1 WR 56C 1.938 (SIDE MT) HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-32571 3800 Double Reduction Right Angle Worm Gear Reducer With Side Mounting Flange, C-Face Quill Input, Hollow Bore Output, 0.9 hp Input, 750:1 Gear, 2.33 rpm Maximum Output, 9913 in-lb Output Torque Rating

Manufacturer part number: 0230-32571

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 3800, 750:1 Gear Ratio, 0.9 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1.938 in Dia Output, 2.33 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 9913 in-lb Output, 3-3/4 in Centre Distance, 40.7 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting

Specifications

Centre Distance:	3-3/4 in
Efficiency:	40.7 %
Gear Ratio:	750:1
Horsepower:	0.9 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	2.33 rpm
Output Size:	1.938 in Dia
Output Type:	Hollow Bore
Series:	3800
Torque Rating:	9913 in-lb Output
