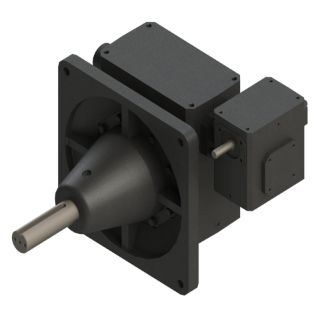

Actual Product May Vary From Image

3807 75/1 WR STD FLANGE HUB

Name: 3807 75/1 WR STD FLANGE HUB
SKU: 3807 75/1 WR STD FLANGE HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-32702 3800 Double Reduction Right Angle Worm Gear Reducer With Drop Bearing Mounting Flange, Shaft Input, Shaft Output, 3.89 hp Input, 75:1 Gear, 23.3 rpm Maximum Output, 6828 in-lb Output Torque Rating

Manufacturer part number: 0230-32702

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 3800, 75:1 Gear Ratio, 3.89 hp Input, Shaft Input, Shaft Output, 0.625 in Dia x 1.76 in L Input, 1.625 in Dia x 4.63 in L Output, 23.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 6828 in-lb Output, 3-3/4 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 65 % Efficiency, Conventional Oil Lubrication, Cast Iron, 12-1/2 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting

Specifications

Centre Distance:	3-3/4 in
Dimensions:	12-1/2 in H
Efficiency:	65 %
Gear Ratio:	75:1
Horsepower:	3.89 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.625 in Dia x 1.76 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	23.3 rpm
Output Size:	1.625 in Dia x 4.63 in L
Output Type:	Shaft
Series:	3800
Torque Rating:	6828 in-lb Output
