3810AST ARL

Name: 3810AST ARL
Brand: Arlington
SKU: 3810AST ARL
Price: 1.50 USD
Availability: OutOfStock

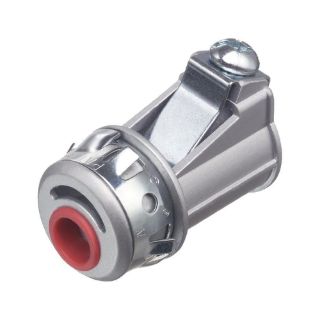

Arlington Snap2IT® 3810AST Straight Cable Connector With Insulated Throat, Angled Prong Clip, 3/8 in Trade, 3/8 in Knockout, 0.37 to 0.49 in Cable Openings, Die Cast Zinc

Manufacturer: Arlington

Manufacturer part number: 3810AST

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.50

Qty:

Product Details

Brand Name

Arlington

Type

Straight

Alternate Supplier #

Grainger - 4JWF1

Description

Arlington Snap2IT® Cable Connector, Straight, 3/8 in Trade, 3/8 in Knockout, Cable Openings: 0.37 to 0.49 in, Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI-A/MC-PCS Cable, Snap-In Connection, Die Cast Zinc, Silver, 1.473 in L x 1.179 in W Dimensions

Application

For steel and aluminum flexible conduit

Standards

CSA File No. LR49636 | cULus 372D | UL Listed

Features

Concretetight when taped
Simply snap the cable into the fitting and snap it into the box, no tools needed the screw only holds the clip in-place
Widest cable ranges, accommodates cable from 14/2 to 3/3 AWG
Super secure the angled, (2) prong clip locks down on MC cable so there no chance of pullout
Cable is removable, simply loosen the screw-on top
Cable connector snaps quickly on to the conduit with a removable screw-in spring steel clip and then snaps into knockout with external spring steel clip, no tools required
Installs as fast and costs the same as our other Snap2IT® fitting, but cable insertion is even easier
Snaps into knockout with external spring steel clip
CSA certified with anti-short bushing only

Specifications

Cable Openings:	0.37 to 0.49 in
Cable Type:	Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI-A/MC-PCS
Color:	Silver
Connection Type:	Snap-In
Country of Origin:	US
Dimensions:	1.473 in L x 1.179 in W
Knockout Size:	3/8 in
Material:	Die Cast Zinc
Trade Size:	3/8 in
