3823-1 BSF

Name: 3823-1 BSF
Brand: Bussmann
SKU: 3823-1 BSF
Availability: OutOfStock

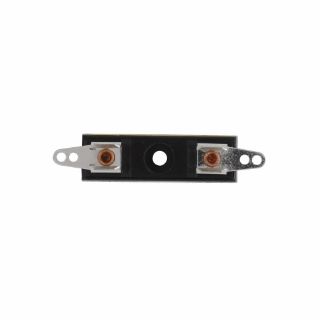

Bussmann 3823-1 Fuse Block, 250 VAC/VDC, 125 VDC, 0 to 30 A, 1 Pole

Manufacturer: Bussmann

Manufacturer part number: 3823-1

Availability: Expected Leadtime 24 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Description

Bussmann Fuse Block, 250 VAC/VDC, 125 VDC, 0 to 30 A, 1 Pole, Solder, Hole Mount, 1-1/4 in Fuse Length, 1/4 in Fuse Dia, Phenolic, Black, 1/2 in L x 1-5/8 in W

Specifications

Amperage Rating:	0 to 30 A
Color:	Black
Connection Type:	Solder
Country of Origin:	MX
Dimensions:	1/2 in L x 1-5/8 in W
Fuse Diameter:	1/4 in
Fuse Length:	1-1/4 in
Material:	Phenolic
Mounting Type:	Hole
Number of Poles:	1
Suitable For Use With:	ABC, AGC, AGX, MDA, MDL, MDM, MDQ, TFF, TFL, TGH Series Fuse
Voltage Rating:	250 VAC/VDC, 125 VDC
