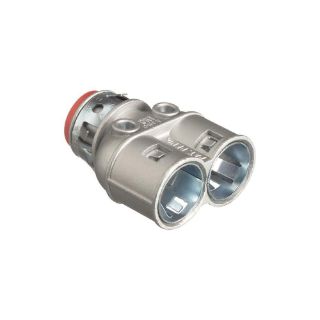

Picture of 3838AST ARL
Actual Product May Vary From Image

3838AST ARL

Arlington Snap2IT® 3838AST Duplex Straight Cable Connector With Insulated Throat, 3/8 in Trade, 3/8 in Knockout, 0.405 to 0.612 in Cable Openings, Die Cast Zinc
Manufacturer: Arlington
Manufacturer part number: 3838AST
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$3.41

Product Details

Brand Name

Arlington

Type

Duplex Straight

Alternate Supplier #

Grainger - 4JWE6

Description

Arlington Snap2IT® connectors are designed for safe and fast installations of flex, MC, AC and HCF cable and cover the widest cable ranges in the industry. They save time too-about 17 s per fitting. Just snap the fitting onto the cable, then into the electrical box. No tools are required for the installation.
Arlington Snap2IT® Cable Connector, Duplex Straight, 3/8 in Trade, 3/8 in Knockout, Cable Openings: 0.405 to 0.612 in, 2 Conductors, Aluminum/Steel/Flex/AC/AC90/HCF/MC/MCI-A Cable, Snap-In Connection, Die Cast Zinc, Silver, 2.154 in H x 1.738 in W Dimensions

Application

For steel and aluminum flexible conduit

Standards

CSA File No. LR49636 | cULus 372D | UL Listed

Features

  • Concretetight when taped
  • Cable connector snaps quickly on to the conduit with a removable screw-in spring steel clip and then snaps into knockout with external spring steel clip, no tools required
  • Competitively priced
  • Safe and fast installations
  • Saves about 17 s per fitting
  • Use anti-short bushing CSA

Specifications

Cable Openings:0.405 to 0.612 in
Cable Type:Aluminum/Steel/Flex/AC/AC90/HCF/MC/MCI-A
Color:Silver
Connection Type:Snap-In
Country of Origin:US
Dimensions:2.154 in H x 1.738 in W
Knockout Size:3/8 in
Material:Die Cast Zinc
Number of Conductors:2
Trade Size:3/8 in
