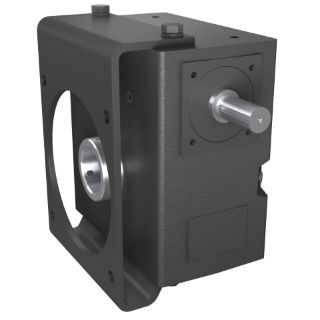

Actual Product May Vary From Image

383L 20/1 L WR 1.438 HUB

Name: 383L 20/1 L WR 1.438 HUB
SKU: 383L 20/1 L WR 1.438 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0220-16321 380L Right Angle Single Reduction Style L Worm Gear Reducer With Side Mounting Flange, Shaft Input, Hollow Bore Output, 7.44 hp Input, 20:1 Gear, 87.5 rpm Maximum Output, 4727 in-lb Output Torque Rating

Manufacturer part number: 0220-16321

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style L

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style L, Series: 380L, 20:1 Gear Ratio, 7.44 hp Input, Shaft Input, Hollow Bore Output, 1 in Dia x 2.48 in L Input, 1.438 in Dia Output, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4727 in-lb Output, 3-3/4 in Centre Distance, 1/4 x 1/8 in Input, 3/8 x 3/16 in Output Keyway, 88.2 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron, 8.28 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	3-3/4 in
Dimensions:	8.28 in W
Efficiency:	88.2 %
Gear Ratio:	20:1
Horsepower:	7.44 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1 in Dia x 2.48 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 3/8 x 3/16 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	87.5 rpm
Output Size:	1.438 in Dia
Output Type:	Hollow Bore
Series:	380L
Torque Rating:	4727 in-lb Output
