384ED-2 TKN

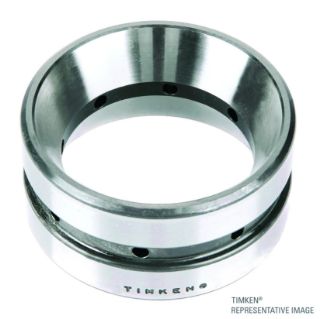

Tapered Roller Bearing Double Cup
Manufacturer: Timken
Manufacturer part number: 384ED-20081
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$255.56

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.
Tapered Roller Bearing Double Cup | Imperial | 100 mm 3.9 in OD | 39.7 mm 1.6 in Width

Features

  • Widest choice including both inch and metric sizes
  • Engineered to deliver higher speeds, heavier loads and longer life
  • Unrivaled technology and engineering support
  • Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:Double Cup
Bearing Material:Steel
Bearing Type:Double Cup
Component (I/R; O/R assembly):Outer Ring
Load Rating UOM:LB
Material - Rolling Elements:Steel
Outer Diameter (in):3.937
Outer Diameter (mm):99.9998
Outer Diameter Type:Straight OD
Outer Race Width (in):1.562
Outer Race Width (mm):39.6748
Overall Width (in):1.562
Overall Width (mm):39.6748
Precision class:Class 2 (Standard)
Raceway Style:Tapered Roller Bearing
Row Type:Double
