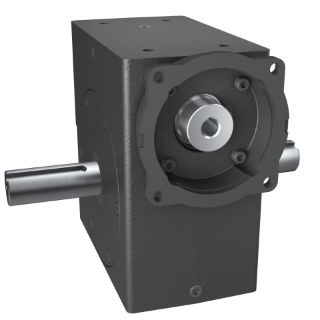

Actual Product May Vary From Image

384L 20/1 A WR 56C HUB

Name: 384L 20/1 A WR 56C HUB
SKU: 384L 20/1 A WR 56C HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0220-08355 380L Right Angle Single Reduction Style A Worm Gear Reducer, C-Face Quill Input, Shaft Output, 7.44 hp Input, 20:1 Gear, 87.5 rpm Maximum Output, 4727 in-lb Output Torque Rating

Manufacturer part number: 0220-08355

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 380L, 20:1 Gear Ratio, 7.44 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 1.5 in Dia x 3.88 in L Output, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4727 in-lb Output, 3-3/4 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 88.2 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron, 13.38 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	3-3/4 in
Dimensions:	13.38 in W
Efficiency:	88.2 %
Gear Ratio:	20:1
Horsepower:	7.44 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	87.5 rpm
Output Size:	1.5 in Dia x 3.88 in L
Output Type:	Shaft
Series:	380L
Torque Rating:	4727 in-lb Output
