Actual Product May Vary From Image

38ADMNA7E BSF

Name: 38ADMNA7E BSF
Brand: Bussmann
SKU: 38ADMNA7E BSF
Availability: OutOfStock

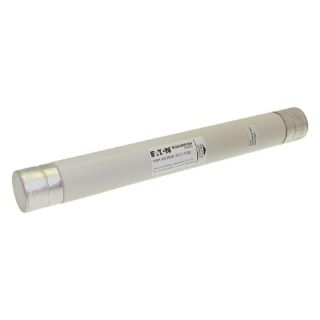

Bussmann 38ADMNA7E British Style Potential Transformer Fuse, 7 A, 38 kV, 40 kA, Class E

Manufacturer: Bussmann

Manufacturer part number: 38ADMNA7E

Availability: Expected Leadtime 54 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

British Style

Description

Eaton's Bussmann series Air medium voltage fuses are suitable for the primary side transformer protection, fuse switch combination unit, fuse bases and fuse switches. They comply with BS 2692 Part 1 1975 standard. A number of options are available including full range capability and alternative fixings arrangements such as different types of tags, studs and collars. Higher current ratings can be obtained by using fuses in parallel and special fixings arrangements are available for this purpose.

Bussmann Potential Transformer Fuse, British Style, Series: AD Series, Non-Indicating, 7 A, 38 kV, 40 kA Interrupt, Class: E, Ferrule Terminal, 2 in Dia x 17.4 in L Body Size

Application

Medium Voltage Potential Transformers, Small Medium Voltage Service Transformers and Small Medium Voltage Control Transformers

Standards

IEEE/ANSI C37.46

Features

Sized for retrofitting in existing hardware
Space saving size eases design considerations for new installations
Current limiting fuses provide positive interruption even on low fault currents
The fuse limits the magnitude of electromechanical stresses in the protected apparatus
These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure

Specifications

Amperage Rating:	7 A
Body Size:	2 in Dia x 17.4 in L
Class:	E
Country of Origin:	GB
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	40 kA
Series:	AD Series
Terminal Type:	Ferrule
Voltage Rating:	38 kV
