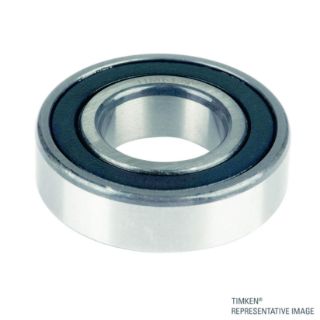

Actual Product May Vary From Image

38PP2 TKN

Name: 38PP2 TKN
Brand: Timken
SKU: 38PP2 TKN
Price: 23.18 USD
Availability: OutOfStock

Fafnir® P38PP2Z1FS50160 30 Series Extra Small Metric Round Bore Radial Deep Groove Ball Bearing, 8 mm Dia Bore, 22 mm OD, 1 Row, 7 mm W, 3650 N Dynamic/1400 N Static Load

Manufacturer: Timken

Manufacturer part number: P38PP2Z1FS50160

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$23.18

Qty:

Product Details

Brand Name

Fafnir®

Type

Extra Small Metric Round Bore

Description

Extra-small 30 metric series bearings can sustain radial, thrust and combined loads proportionate to the capacities of the small shafts for which they are designed. They are appropriate for use in fractional horsepower motors, precision instruments, domestic appliances, film projectors and similar devices.

Fafnir® Radial Deep Groove Ball Bearing, Extra Small Metric Round Bore, Series: 30 Series, 8 mm Bore, 22 mm OD, 1 Rows, 7 mm Width, Double Seal Closure, 3650 N Dynamic/1400 N Static Load, Steel Bearing, Buna-N Seal, Steel Cage, -30 to 275 deg F, Uncoated

Application

Agricultural, Automotive, Chemical, General Industrial and Utilities

Standards

ABEC 1 Certified

Features

Designed for small shafts
Can sustain radial, thrust and combined load proportionate to capacities of small shafts
Electric motor quality for applications where quietness is required

Specifications

Bearing Material:	Steel
Bore Diameter:	8 mm
Cage Material:	Steel
Closure Type:	Double Seal
Country of Origin:	US
Finish:	Uncoated
Load Capacity:	3650 N Dynamic/1400 N Static
Number of Rows:	1
Outside Diameter:	22 mm
Seal Material:	Buna-N
Series:	30 Series
Temperature Rating:	-30 to 275 deg F
Width:	7 mm
