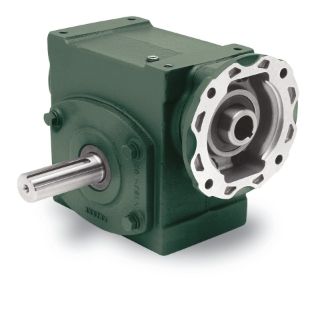

Actual Product May Vary From Image

38Q10L21 DOD

Name: 38Q10L21 DOD
Brand: Dodge
SKU: 38Q10L21 DOD
Price: 3,327.24 USD
Availability: OutOfStock

38Q10L21 TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 38Q10L21

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$3,327.24

Qty:

Product Details

Base to Output Center Height:	3.8800
Base to Output Center Height (Unit):	INCH
Case Size:	38
Center Distance:	3.5000
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	7.7500
Center to End of Shaft Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	10.0000
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	9.1900
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Quill
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 210TC Frame
Mounting Bolt Pattern Length:	8.5000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	4.7500
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	10.0000
Output Shaft Center to Input Motor Mounting Face Distance:	7.5500
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Left
Overhung Load:	2700
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	3310
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Output:	1.6250
Shaft Diameter Output (Unit):	INCH
Shaft Length Output:	4.2000
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	10.6300
Thermal Horsepower Rating (Unit):	HORSEPOWER
