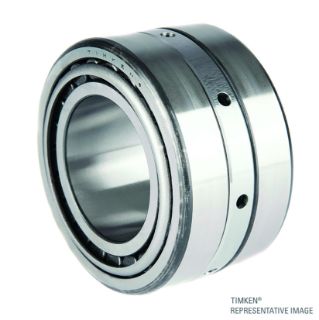

Actual Product May Vary From Image

395TD 90110 TKN

Name: 395TD 90110 TKN
Brand: Timken
SKU: 395TD 90110 TKN
Availability: OutOfStock

Tapered Roller Bearing Double Cone Assembly

Manufacturer: Timken

Manufacturer part number: 395TD-90110

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Double Cone Assembly | Imperial | 65 mm 2.6 in Bore | 55.5 mm 2.2 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Assembly Number:	90110
Bearing Material:	Steel
Bearing Type:	Double Cone
Bore Type:	Tapered Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	36600
Inner Race Width (in):	2.187
Inner Race Width (mm):	55.5498
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter Type:	Straight OD
Outer Race Width (in):	2.187
Outer Race Width (mm):	55.5498
Overall Width (in):	2.187
Overall Width (mm):	55.5498
Precision class:	Class 2 (Standard)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Double
Shaft Size (in):	2.5579
Shaft Size (mm):	64.97066
Static Load Rating:	56200
