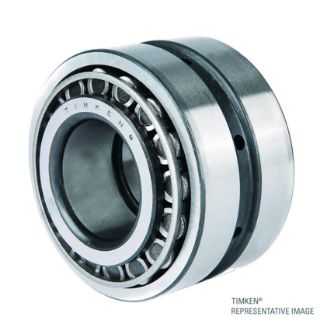

Actual Product May Vary From Image

396 90203 TKN

Name: 396 90203 TKN
Brand: Timken
SKU: 396 90203 TKN
Availability: OutOfStock

Tapered Roller Bearing Double Cup Assembly

Manufacturer: Timken

Manufacturer part number: 396-90203

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Double Cup Assembly | Imperial | 110 mm 4.3 in OD | 52.4 mm 2.1 in Width

Features

Internal geometry provides increased stiffness and exceptional runout
Radial runout high point marked for accurate installation
Timken® outer (cup) and inner (cone) rings should be used in combination

Specifications

Assembly Components:	Assembly
Assembly Number:	90203
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	38700
Inner Race Width (in):	2.0625
Inner Race Width (mm):	52.3875
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	4.3307
Outer Diameter (mm):	109.99978
Outer Diameter Type:	Straight OD
Outer Race Width (in):	1.8125
Outer Race Width (mm):	46.0375
Overall Width (in):	2.0625
Overall Width (mm):	52.3875
Precision class:	Class 3 (Precision)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Double
Static Load Rating:	56200
