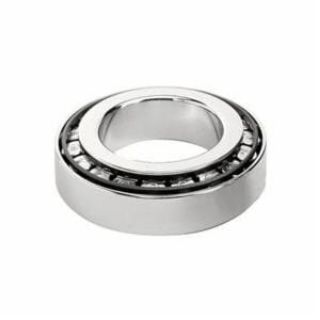

Actual Product May Vary From Image

3984 90040 TKN

Name: 3984 90040 TKN
Brand: Timken
SKU: 3984 90040 TKN
Availability: OutOfStock

Timken® 3984-90040 3900 Precision Type TS Tapered Roller Bearing, 2.63 in Dia Bore, 4.44 in OD, 1 Row, 1.19 in W, 31200 lb Dynamic/43000 lb Static Load

Manufacturer: Timken

Manufacturer part number: 3984-90040

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Precision Type TS

Description

This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.

Timken® Tapered Roller Bearing, Precision Type TS, Series: 3900, 2.63 in Bore Dia, 4.44 in Outside Dia, 1 Rows, 1.19 in Width, 31200 lb Dynamic/43000 lb Static, Steel Bearing, Stamped Steel Cage, -65 to 250 deg F

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles and Trailer Wheels

Features

Single cone and cup
One-piece pressed steel cage retains rollers on the cone and spaces them evenly

Specifications

Bearing Material:	Steel
Bore Diameter:	2.63 in
Cage Material:	Stamped Steel
Load Capacity:	31200 lb Dynamic/43000 lb Static
Number of Rows:	1
Outside Diameter:	4.4400000000000004 in
Series:	3900
Temperature Rating:	-65 to 250 deg F
Width:	1.19 in
