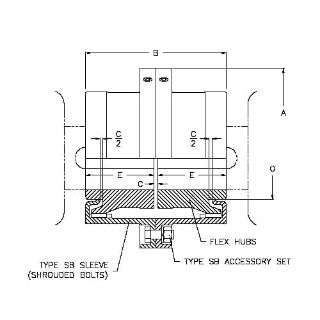

3B FHUB KOP

Picture of 3B FHUB KOP
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
1961598
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Kop-Flex®

Description

Kop-Flex® Flexible Hub, 3 Coupling, 3-1/8 in Bore Dia, 4-1/4 in Hub Dia, 3-5/32 in Hub Length, 6800 rpm Maximum, 3-5/32 in Length Through Bore, 1/2 in Screw, Steel

Application

For use with model B gear coupling

Features

  • Greater lubricant capacity allows longer periods between scheduled lubrications and longer service life
  • Straight tooth design provides improved load distribution, lower stresses and longer life for the gear teeth
  • Less frequently required lubrication
  • Smaller and lighter than FAST’S® coupling, but with the same maximum bore capacities
  • Tight tolerance flange bolt holes

Specifications

Bore Diameter:3-1/8 in
Coupling Size:3
Hub Diameter:4-1/4 in
Hub Length:3-5/32 in
Length Through Bore:3-5/32 in
Material:Steel
Maximum Speed:6800 rpm
Screw Size:1/2 in
