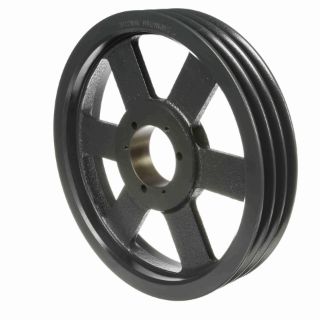

Actual Product May Vary From Image

3B124SK BRN

Name: 3B124SK BRN
Brand: Regal Rexnord
SKU: 3B124SK BRN
Price: 412.24 USD
Availability: OutOfStock

Browning® 1004704 Type D Arm Multiple Sheave, 1/2 to 2-5/8 in QD® Bore, 12.68 in OD, 3 Grooves, 12.2 in (A)/12.7 in (B) Dia Pitch, 2-7/16 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1004704

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$412.24

Qty:

Product Details

Brand Name

Browning®

Type

Type D Arm

Description

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type D Arm, QD® Bore, 1/2 to 2-5/8 in Bore, 12.68 in OD, 12.2 in (A)/12.7 in (B) Pitch Diameter, 3 Grooves, 2-7/16 in Face Width, SK Bushing, 12-3/4 in Overall Length, For Use With: GripBelt® A and B Cross Section V-Belt, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Pulp, Paper and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

Combination groove all Browning® B sheaves permit the running of A and B belts to be run in them and thus providing a variety of different pitch diameters and horsepower
Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible

Specifications

Bore Diameter:	1/2 to 2-5/8 in
Bore Type:	QD®
Bushing Type:	SK
Country of Origin:	MX
Face Width:	2-7/16 in
Material:	Cast Iron
Number of Grooves:	3
Outside Diameter:	12.68 in
Overall Length:	12-3/4 in
Pitch Diameter:	12.2 in (A)/12.7 in (B)
Suitable For Use With:	GripBelt® A and B Cross Section V-Belt
