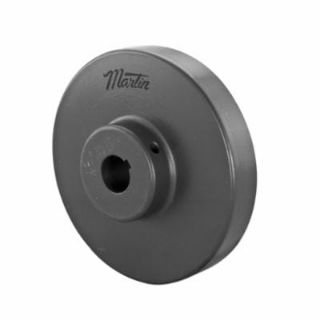

Martin Quadra-Flex® 3J 1/2 Bored-to-Size Type J Coupling Flange, 03 Coupling, 1/2 in Bore Dia, 2 in Length Through Bore, 1-1/4 in Hub Dia, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 3J 1/2
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$10.57

Product Details

Brand Name

Martin

Type

Bored-to-Size Type J

Description

Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation and withstands misalignment, shock and vibration. Available in sizes 3 to 16 in bored to size, QD bushed, spacer type and plain bore for custom requirements.
Martin Quadra-Flex® Coupling Flange, Bored-to-Size Type J, 03 Coupling, 1/2 in Bore Dia, 1-1/4 in Hub Dia, 7/16 in Hub Length, 1/8 x 1/16 in Keyway, 9200 rpm Maximum, 2 in Length Through Bore, 10-24 x 3/16 in Screw, Steel

Specifications

Bore Diameter:1/2 in
Country of Origin:US
Coupling Size:03
Hub Diameter:1-1/4 in
Hub Length:7/16 in
Keyway Size:1/8 x 1/16 in
Length Through Bore:2 in
Material:Steel
Maximum Speed:9200 rpm
Screw Size:10-24 x 3/16 in
