3MM215WI TUM TKN

Name: 3MM215WI TUM TKN
Brand: Timken
SKU: 3MM215WI TUM TKN
Price: 5,570.25 USD
Availability: OutOfStock

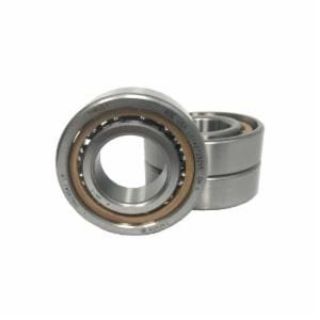

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

3MM215WI TUM

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$5,570.25 / EA

Description

Brand Name

Timken®

Type

Medium Duty

Description

3MM-WI manufactured with 25 deg contact angle, are for use on applications where the loading on the bearings is predominately thrust and a high degree of axial rigidity is a definite requirement. Typical applications for these are large vertical rotary surface grinders, horizontal and vertical disc grinders, and thrust bearing applications for heavy-duty lathes where the bearings must directly carry extremely high tail stock or chucking pressure.

Timken® Super Precision Angular Contact Ball Bearing, Medium Duty, Series: 3MM200WI, 75 mm Bore Dia, 130 mm Outside Dia, 3 Rows, 25 mm Width, 25 deg Contact, 83700 N Dynamic/62300 N Static, Phenolic Cage, 9700 rpm Maximum

Application

High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle

Standards

ABMA ABEC 7/9 Certified

Features

Single and double-row ball screw
Very high-speed
High accuracy and stiffness
Low operating temperature
Low noise and vibration
Angular contact low shoulder on outer-ring

Specifications

Bore Diameter:	75 mm
Cage Material:	Phenolic
Contact Angle:	25 deg
Load Capacity:	83700 N Dynamic/62300 N Static
Maximum Speed:	9700 rpm
Number of Rows:	3
Outside Diameter:	130 mm
Series:	3MM200WI
Width:	25 mm
