3MM9119WI DUL TKN

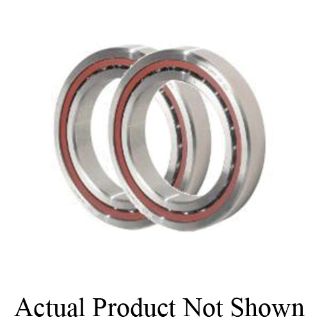

Timken® 3MM9119WI DUL 3MM9100WI Light Duty Super Precision Angular Contact Ball Bearing With Steel Ball, 95 mm Dia Bore, 145 mm OD, 2 Rows, 24 mm W, 25 deg, 77400 N Dynamic/69400 N Static Load
Manufacturer: Timken
Manufacturer part number: 3MM9119WI DUL
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Timken®

Type

Light Duty

Description

3MM-WI manufactured with 25 deg contact angle, are for use on applications where the loading on the bearings is predominately thrust and a high degree of axial rigidity is a definite requirement. Typical applications for these are large vertical rotary surface grinders, horizontal and vertical disc grinders, and thrust bearing applications for heavy-duty lathes where the bearings must directly carry extremely high tail stock or chucking pressure.
Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 3MM9100WI, 95 mm Bore Dia, 145 mm Outside Dia, 2 Rows, 24 mm Width, 25 deg Contact, 77400 N Dynamic/69400 N Static, Phenolic Cage, 7800 rpm Maximum

Application

High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle

Standards

ABMA ABEC 7/9 Certified

Features

  • Single and double-row ball screw
  • Very high-speed
  • High accuracy and stiffness
  • Low operating temperature
  • Low noise and vibration
  • Angular contact low shoulder on outer-ring

Specifications

Bore Diameter:95 mm
Cage Material:Phenolic
Contact Angle:25 deg
Load Capacity:77400 N Dynamic/69400 N Static
Maximum Speed:7800 rpm
Number of Rows:2
Outside Diameter:145 mm
Series:3MM9100WI
Width:24 mm
