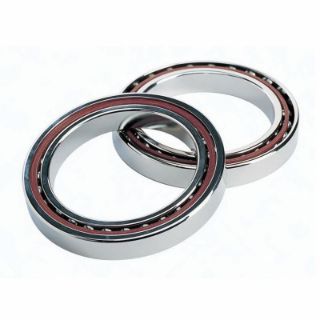

Actual Product May Vary From Image

3MMV9304HX CR SUL TKN

Name: 3MMV9304HX CR SUL TKN
Brand: Timken
SKU: 3MMV9304HX CR SUL TKN
Availability: OutOfStock

Timken® 3MMV9304HX SUL 3MMV9300HX Light Duty Super Precision Angular Contact Ball Bearing With Steel Ball, 20 mm Dia Bore, 37 mm OD, 1 Row, 9 mm W, 25 deg, 3336 N Dynamic/1601 N Static Load

Manufacturer: Timken

Manufacturer part number: 3MMV9304HX SUL

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Light Duty

Description

3MMV-HX are dimensionally interchangeable with equivalent 9100, 99100, 9300 and ISO series-10 and 19 bearings. These designs enable spindle heads to remove more material in less time while maintaining superior machining tolerances. This is achieved through a proven combination of unique ball complements with precision engineering raceway geometries.

Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 3MMV9300HX, 20 mm Bore Dia, 37 mm Outside Dia, 1 Rows, 9 mm Width, 25 deg Contact, 3336 N Dynamic/1601 N Static, Phenolic Cage, 45200 rpm Maximum

Application

High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle

Standards

ABMA ABEC 7/9 Certified

Features

Single and double-row ball screw
Very high-speed
High accuracy and stiffness
Low operating temperature
Low noise and vibration
Angular contact low shoulder on both inner and outer-ring

Specifications

Bore Diameter:	20 mm
Cage Material:	Phenolic
Contact Angle:	25 deg
Load Capacity:	3336 N Dynamic/1601 N Static
Maximum Speed:	45200 rpm
Number of Rows:	1
Outside Diameter:	37 mm
Series:	3MMV9300HX
Width:	9 mm
