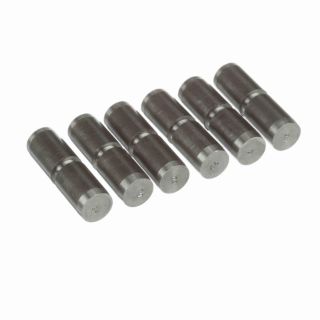

Actual Product May Vary From Image

3Q SH PIN BRN

Name: 3Q SH PIN BRN
Brand: Regal Rexnord
SKU: 3Q SH PIN BRN
Price: 14.74 USD
Availability: OutOfStock

Browning® 1305119 Stock Shear Pin, 1/4 in Dia Neck, 1-3/4 in (SHQ1)/1-15/16 in (SHR1) OD, For Use With Model SHQ1/SHR1 Hub, 12700 in-lb Torque, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1305119

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$14.74

Qty:

Product Details

Brand Name

Browning®

Description

Browning® shear pin hubs are designed to shear a necked pin at a predetermined load. This protects equipment from overloads. Consisting of a hub assembly, a sprocket and shear pin, the shear pin bridges between the sprocket and hub assembly. The shear pin is available in load increments, so the closest one to your application requirements must be chosen. Resetting the shear pin hub is accomplished manually by replacing the shear pin. Best applied to applications where infrequent overloads are encountered.

Browning® Stock Shear Pin, 1/4 in Diameter Neck, 1-3/4 in (SHQ1)/1-15/16 in (SHR1) OD, 12700 in-lb Torque, 100 rpm Maximum, 20 hp, For Use With: Model SHQ1/SHR1 Hub, Steel

Application

Aggregate and Cement, Agriculture, Forestry, Metals, Minerals and Mining, Packaging Machinery, Pulp and Paper and Unit Handling Industries

Features

Helps prevent damage to machinery due to sudden overload by shearing a necked pin at the predetermined load
Sprocket rotates freely after pin breakage, allowing the drive to idle
Universal mounting
Single position
Reversibility and repeatability

Specifications

Country of Origin:	MX
Horsepower:	20 hp
Material:	Steel
Maximum Speed:	100 rpm
Neck Diameter:	1/4 in
Outside Diameter:	1-3/4 in (SHQ1)/1-15/16 in (SHR1)
Suitable For Use With:	Model SHQ1/SHR1 Hub
Torque Rating:	12700 in-lb
