4 3V 412 SH MSG

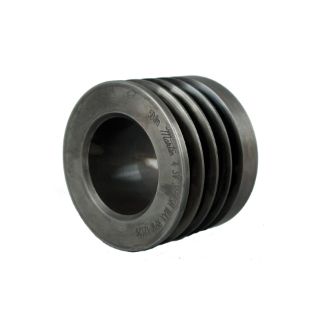

Martin Hi-Cap® 4 3V 412 SH Solid Type A-1 Wedge Stock Sheave, 1 to 1-3/8 in QD® Bushed Bore, 4.12 in OD, 4 Grooves, 4.07 in Dia Pitch, 1-29/32 in W Face
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 4 3V 412 SH
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$93.46

Product Details

Brand Name

Martin

Type

Solid Type A-1

Description

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V and 8V belts.
Martin Hi-Cap® Wedge Stock Sheave, Solid Type A-1, QD® Bushed Bore, 1 to 1-3/8 in Bore, 4.12 in OD, 4.07 in Pitch Diameter, 4 Grooves, 1-29/32 in Face Width, SH Bushing, 1.91 in Overall Length, For Use With: 3V-Cross Section V-Belts, Steel

Features

  • Interchangeable with other manufacturer's QD bushings
  • Tolerances adhere to industry guidelines
  • Statically balanced with maximum rim speed marked on print
  • Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:1 to 1-3/8 in
Bore Type:QD® Bushed
Bushing Type:SH
Country of Origin:US
Face Width:1-29/32 in
Material:Steel
Number of Grooves:4
Outside Diameter:4.12 in
Overall Length:1.91 in
Pitch Diameter:4.07 in
Suitable For Use With:3V-Cross Section V-Belts
