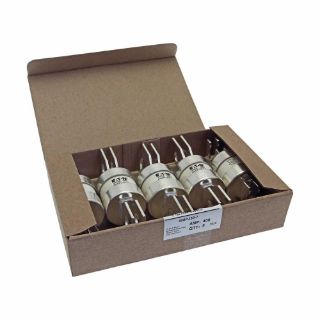

Actual Product May Vary From Image

400PJ30-7 BSF

Name: 400PJ30-7 BSF
Brand: Bussmann
SKU: 400PJ30-7 BSF
Availability: OutOfStock

Bussmann 400PJ30-7 Feeder Pillar Low Voltage Type J Fuse Link, 415 VAC, 400 A

Manufacturer: Bussmann

Manufacturer part number: 400PJ30-7

Availability: Expected Leadtime 33 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Feeder Pillar Low Voltage Type J

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann Fuse Link, Feeder Pillar Low Voltage Type J, Series: PJ30, 415 VAC, 400 A, Rated Breaking Capacity: 80 kAIC, 110 mm W x 38 mm D x 30 mm H

Application

Electrical Assemblies, Panels, Aftermarket, Control Panels for Machines, Panel Builders, Conventional Energy Generation, Coal and Fossil Fuel, Industrial Facilities and Factories, Power Distribution and Control, Electrical Authorities in Distribution Pillars, Open Type Substation Boards, Heavy Duty Cutouts and Underground Connection Boxes

Standards

ASTA Certified | BS 88 | RoHS Compliant

Features

GU characteristics
Ideal for utility applications
Excellent cable protection

Specifications

Amperage Rating:	400 A
Country of Origin:	IN
Dimensions:	110 mm W x 38 mm D x 30 mm H
Rated Breaking Capacity:	80 kAIC
Series:	PJ30
Voltage Rating:	415 VAC
