Actual Product May Vary From Image

4010900AST ARL

Name: 4010900AST ARL
Brand: Arlington
SKU: 4010900AST ARL
Price: 1.50 USD
Availability: OutOfStock

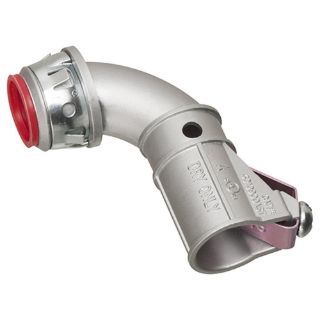

Arlington Snap2IT® 4010900AST 1-Piece Cable Connector With Insulated Throat, 90 deg Clip, 1 in Trade, 1/2 in Knockout, 0.405 to 0.605 in Dia Cable Openings, Zinc

Manufacturer: Arlington

Manufacturer part number: 4010900AST

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.50

This product has a minimum quantity of 25

Qty:

Product Details

Brand Name

Arlington

Type

1-Piece

Description

Arlington 1-piece 90 degree Snap2It® fittings make cable installation easier than ever. and they handle the widest variety. No tools easy snap-in installation. Snap the fitting onto the cable. Snap the assembly into the box.

Arlington Snap2IT® Cable Connector, 1-Piece, 1 in Trade, 1/2 in Knockout, Cable Openings: 0.405 to 0.605 in Dia, MC/HCF/AC/MCI-A/AC90/ACG90/Flexible Metal Conduit Cable, Snap-In Connection, 90 deg Angle, Zinc, Silver, 2.56 in H x 1.716 in W Dimensions

Application

For 14/2 AWG, 14/3 AWG, 14/4 AWG, 12/2 AWG, 12/3 AWG, 12/4 AWG, 10/2 AWG range cables

Standards

cULus Listed | CSA Certified

Features

Widest total cable ranges of 14/2 to 10/3 AWG
Secure installation no pullout
Easy, screwdriver removal from box, connector is reusable
Fully assembled - ready to use with and without insulated throat
1/2 in knockout MC cable connector snaps quickly onto the conduit with a removable screw-in spring steel clip and then snaps into knockout with external spring steel clip
Concretetight when taped
Red tinted internal clip indicates easier insertion of conduit and comes with insulated throat

Specifications

Angle:	90 deg
Cable Openings:	0.405 to 0.605 in Dia
Cable Type:	MC/HCF/AC/MCI-A/AC90/ACG90/Flexible Metal Conduit
Color:	Silver
Connection Type:	Snap-In
Country of Origin:	US
Dimensions:	2.56 in H x 1.716 in W
Knockout Size:	1/2 in
Material:	Zinc
Trade Size:	1 in
