Actual Product May Vary From Image

4010AST ARL

Name: 4010AST ARL
Brand: Arlington
SKU: 4010AST ARL
Price: 1.50 USD
Availability: InStock

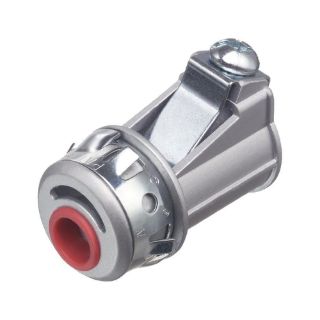

Arlington Snap2IT® 4010AST Cable Connector With Insulated Throat, 3/8 in Trade, 1/2 in Knockout, 0.44 to 0.612 in Cable Openings, Die Cast Zinc

Manufacturer: Arlington

Manufacturer part number: 4010AST

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	150	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.50

Qty:

Product Details

Brand Name

Arlington

Alternate Supplier #

Grainger - 4JWF3

Description

Arlington Snap2IT® Cable Connector, 3/8 in Trade, 1/2 in Knockout, Cable Openings: 0.44 to 0.612 in, Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI/MCI-A/MC-PCS Cable, Snap-In Connection, Die Cast Zinc, Silver, 1.473 in L x 1.244 in W Dimensions

Application

For steel and aluminum flexible conduit

Standards

CSA File No. LR49636 | cULus 372D | UL Listed

Features

Concretetight when taped
Cable connector snaps quickly on to the conduit with a removable screw-in spring steel clip and then snaps into knockout with external spring steel clip, no tools required
Widest cable ranges, accommodates cable from 14/2 to 3/3 AWG
Super secure the angled, (2) prong clip locks down on MC cable so there no chance of pullout
Cable is removable, simply loosen the screw-on top
Installs as fast and costs the same as our other Snap2IT® fitting, but cable insertion is even easier
Red tinted internal clip indicates easier insertion of conduit and comes with insulated throat

Specifications

Cable Openings:	0.44 to 0.612 in
Cable Type:	Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI/MCI-A/MC-PCS
Color:	Silver
Connection Type:	Snap-In
Country of Origin:	US
Dimensions:	1.473 in L x 1.244 in W
Knockout Size:	1/2 in
Material:	Die Cast Zinc
Trade Size:	3/8 in
