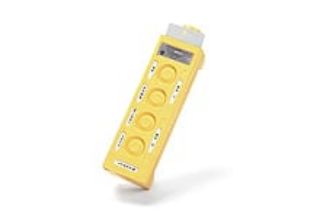

Actual Product May Vary From Image

4024 WOO

Name: 4024 WOO
Brand: Molex/Woodhead
SKU: 4024 WOO
Price: 869.49 USD
Availability: OutOfStock

Woodhead® Super-Safeway® 4024 130126 Pushbutton Pendant Station, 250 VAC, 0.5 A

Manufacturer: Molex/Woodhead

Manufacturer part number: 4024

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$869.49

Qty:

Product Details

Brand Name

Woodhead®

Description

Woodhead® push button pendant products are ergonomically designed hand-held control boxes, available in a wide range of industrial grade pendants and enclosures that feature compact Watertite® nylon or durable NEoTEX® rubber construction.

Woodhead® Super-Safeway® Pushbutton Pendant Station, Series: 130126, 250 VAC, 0.5 A, 1NO-1NC Contact Form, Momentary Operator, Flush Round Pushbutton Actuator, Rubber, Yellow, 9.13 in L x 3 in W x 2.66 in H Dimensions

Application

Automated Assembly Equipment, Automatic Doors, Automation Controllers, Automation Equipment, Automotive Plants and Workstations Applications

Standards

CSA File No. LR32400

Features

Unique, industry-leading, NEoTEX® Paracril OZO rubber pendant stations yield the best performance for abrasion, chemical exposure and temperature extremes
Ergonomic design fits easily in the palm of your hand for greater comfort and reduced fatigue
Single and 2-speed buttons can be wired as an electrical interlock for improved safety
An elastic, chemically resistant gasket ensures a tight seal between front and back
MAX-LOC® strain relief included as standard to provide maximum cord pullout resistance
Neoprene gasket and o-ring seal, NEoTEX® Paracril OZO rubber pendent cover and housing
MAX-LOC® nylon strain relief with rubber grommet cord connection, zinc plated steel Messenger cable bracket and cover screws
35 self-adhesive, pre-printed labels on one acetate sheet nameplate set
1/2 to 3/4 in Dia cord
4-buttons, 1-speed, F3 3/4 in cord grip body size, 2 hp at 250 VAC
Pushbuttons are not exposed beyond enclosure face to prevent unwanted activation and button protection
Housing to cover fitted with tongue and groove design for best sealing performance
Built-in ground connection saves installation time

Includes

Legend Sheet

Specifications

Actuator:	Flush Round Pushbutton
Amperage Rating:	0.5 A
Color:	Yellow
Contact Form:	1NO-1NC
Country of Origin:	MX
Dimensions:	9.13 in L x 3 in W x 2.66 in H
Material:	Rubber
Operator Type:	Momentary
Series:	130126
Voltage Rating:	250 VAC
