Actual Product May Vary From Image

4040X 1 3/4 BRN

Name: 4040X 1 3/4 BRN
Brand: Regal Rexnord
SKU: 4040X 1 3/4 BRN
Availability: OutOfStock

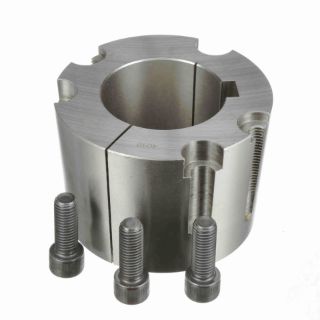

Browning® 3625068 Taper Bore Bushing, 1-3/4 in Dia Bore, 5-3/4 in Dia Barrel, 4 in OAL

Manufacturer: Regal Rexnord

Manufacturer part number: 3625068

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Description

Browning® Taper Bore Bushing, 1-3/4 in Bore, 5-3/4 in Barrel Diameter, 1-1/2 in/ft Taper, 5.54 in Diameter Bolt Circle, 3 Bolt Holes, 5/8 in Dia x 1-3/4 in L Screw, 77300 in-lb Torque, For Use With: Gearbelt® Sprockets, HPT® and HPT Chain™ Synchronous Belt Drives, 4 in Overall Length, 3/8 x 3/16 in Keyway

Application

Aggregate, Cement, Agriculture, HVAC, Minerals, Mining, Packaging Machinery and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

Key to key drive cap screws act as an external key
1-1/2 in/ft taper on barrel since this is a non-Self-locking taper it provides ease of installation and removal of products from the shaft
Size 4040 bushing

Specifications

Barrel Diameter:	5-3/4 in
Bolt Circle Diameter:	5.54 in
Bore Diameter:	1-3/4 in
Country of Origin:	CN
Keyway Size:	3/8 x 3/16 in
Number of Bolt Holes:	3
Overall Length:	4 in
Screw Size:	5/8 in Dia x 1-3/4 in L
Suitable For Use With:	Gearbelt® Sprockets, HPT® and HPT Chain™ Synchronous Belt Drives
Taper:	1-1/2 in/ft
Torque Rating:	77300 in-lb
