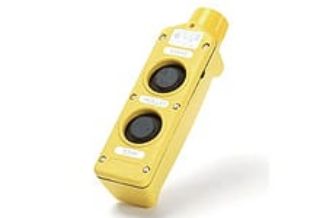

Actual Product May Vary From Image

4052 WOO

Name: 4052 WOO
Brand: Molex/Woodhead
SKU: 4052 WOO
Price: 182.72 USD
Availability: OutOfStock

Woodhead® Watertite® 4052 130126 SPDT-DB Pushbutton Pendant Station Switch, 240 VAC, 10 A

Manufacturer: Molex/Woodhead

Manufacturer part number: 4052

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$182.72

Qty:

Product Details

Brand Name

Woodhead®

Type

SPDT-DB

Description

Woodhead® push button pendant products are ergonomically designed hand-held control boxes, available in a wide range of industrial grade pendants and enclosures that feature compact Watertite® nylon or durable NEoTEX® rubber construction.

Woodhead® Watertite® Pushbutton Pendant Station Switch, SPDT-DB, Series: 130126, 240 VAC, 10 A, Momentary Operator, Flush Round Pushbutton Actuator, Compression Cord Grip Connection, Surface Mounting, Nylon, Yellow, 6 in L x 1.88 in W x 1.86 in H Dimensions

Application

Automated Assembly Equipment, Automatic Doors, Automation Controllers, Automation Equipment, Automotive Plants and Workstations Applications

Standards

CSA File No. LR32400 | UL Listed

Features

Lightweight, polycarbonate pendant enclosure is double insulated, UV stabilized and chemically resistant to provide long life
Ergonomic design fits easily in the palm of your hand for greater comfort and reduced fatigue
Single speed, double throw, momentary contacts can be wired either normally open or normally closed for complete application flexibility
An elastic, chemically resistant gasket ensures a tight seal between front and back
MAX-LOC® strain relief included as standard to provide maximum cord pullout resistance
Neoprene cover gasket seal, rubber pushbutton diaphragm seal
MAX-LOC® nylon strain relief with rubber grommet cord connection, stainless steel cover face screws
35 self-adhesive, pre-printed labels on one acetate sheet nameplate set
5/16 to 5/8 in Dia cord
Two buttons, F2 1/2 in cord grip body size, 1/2 hp at 125 VAC, 3/4 hp at 250 VAC, 1 hp at 125 VAC or 250 VAC
Wet industrial duty
Single speed, double throw, momentary type, fine sliver
240 VAC 30 A make 3 A break
Compression cord grip with support hole

Includes

Legend Sheet

Specifications

Actuator:	Flush Round Pushbutton
Amperage Rating:	10 A
Color:	Yellow
Connection Type:	Compression Cord Grip
Country of Origin:	MX
Dimensions:	6 in L x 1.88 in W x 1.86 in H
Material:	Nylon
Mounting Type:	Surface
Operator Type:	Momentary
Series:	130126
Voltage Rating:	240 VAC
