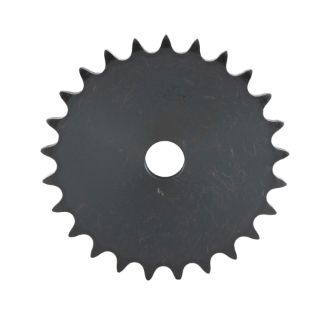

Actual Product May Vary From Image

40A32 UST

Name: 40A32 UST
Brand: US Tsubaki
SKU: 40A32 UST
Price: 24.39 USD
Availability: OutOfStock

Tsubaki® 40A32 Plain Bore Type A Single Pitch Roller Chain Sprocket, 0.594 in Dia Bore, 5.38 in OD, #40 Chain, 32 Teeth, 1/2 in Pitch, Carbon Steel

Manufacturer: US Tsubaki

Manufacturer part number: 40A32

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$24.39

Qty:

Product Details

Brand Name

Tsubaki®

Type

Plain Bore Type A

Alternate Supplier #

Applied Industrial Technologies - 100805413
Motion Industries - 00159795

Description

Associated with "A" style sprockets where there is no special machining performed to accommodate keyways or set screws, only a hole to accommodate shaft diameter.

Tsubaki® Single Pitch Roller Chain Sprocket, Plain Bore Type A, 0.594 in Bore Dia, 5.38 in Outside Dia, #40 Chain, 32 Teeth, 1/2 in Pitch, 5.101 in, 1-24 Screw, 1/8 x 1/16 in Keyway, Carbon Steel

Application

Oil and Gas, Lumber, Mining, Primary Metals, Material Handling, Conveyor, Civil Engineering Projects, Machine Tool, Marine, Packaging Machinery, Pulp and Paper, Food Processing and Forestry

Standards

PTDA and CEMA Standard

Specifications

Bore Diameter:	0.594 in
Chain Size:	#40
Country of Origin:	CN
Keyway Size:	1/8 x 1/16 in
Material:	Carbon Steel
Number of Teeth:	32
Outside Diameter:	5.38 in
Pitch:	1/2 in
Pitch Diameter:	5.101 in
Screw Size:	1-24
