40A34 MSG

Name: 40A34 MSG
Brand: Martin Sprocket & Gear
SKU: 40A34 MSG
Price: 27.75 USD
Availability: OutOfStock

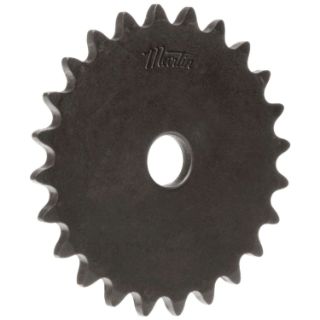

Martin 40A34 Type A Single Strand Solid Reboreable Roller Chain Sprocket, 0.59375 to 4.866 in Dia Bore, 5.696 in OD, #40 Chain, 34 Teeth, 1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 40A34

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$27.75

Qty:

Product Details

Brand Name

Martin

Type

Type A Single Strand Solid Reboreable

Description

A Plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Roller Chain Sprocket, Type A Single Strand Solid Reboreable, 0.59375 to 4.866 in Bore, 5.696 in OD, #40 Chain, 34 Teeth, 1/2 in Pitch, 5.419 in Pitch Diameter, 0.284 in Length Through Bore, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

Precise machining and processes ensure consistent finish and high quality
Manufactured of high carbon steel

Specifications

Bore Diameter:	0.59375 to 4.866 in
Chain Size:	#40
Length Through Bore:	0.284 in
Material:	Steel
Number of Teeth:	34
Outside Diameter:	5.696 in
Pitch:	1/2 in
Pitch Diameter:	5.419 in
